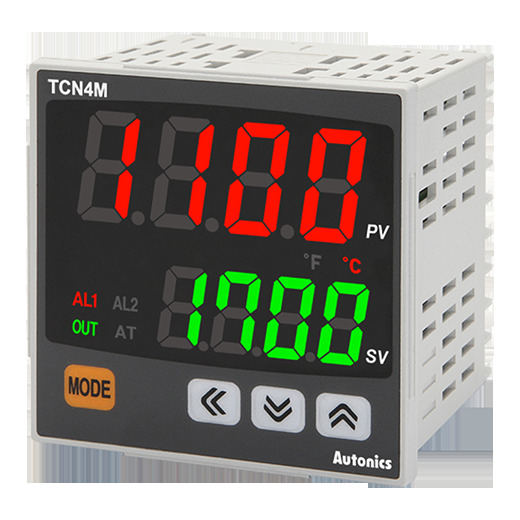

Autonics TCN4M-24R Economical Dual Display Digital PID Temperature Controllers
| Display method | 4-digit 7-segment LED |
|---|---|
| Control method | ON/OFF control, P, PI, PD, PID control |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω |
| Sampling cycle | 100ms |
| Control output | Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF] |
| Option output | Alarm 1/2 |
| Power supply | 100-240VAC~ 50/60Hz |
| Approval | CE C |
| Display accuracy_RTD | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Display accuracy_Thermocouple | •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Proportional band | 0.1 to 999.9℃/℉ |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV) |
| Weight | Approx. 203g(approx. 133g) |
1. We can accept OEM and ODM
2. Generally 5-10 working days if the goods are in stock, or 10-20 working days with large quantity or customization
3. Professional goods packaging and shipping 4. Support multiple payment terms (T/T, e-Checking, L/C, Western Union, Online Trade Assurance)
5. The warranty period is 18 months
6. As for the installation, no hesitation to contact us at any time
7. We have 24 hours online service
8. Welcome to visit our factory at any time
FAQ
Q1. Can I get some samples?
A1: Yes, sample order is available for quality check and market test.
Q2. What’s the price terms you can offer for us?
A2: We can accept EXW, FOB, CIF and so on.
Q3. What’s the delivery time?
A3: It usually takes about 3-5 working days for stock and 10-15 days for large quantity.
Q4. What’s your payment terms?
A4: We usually accept all kinds of payment terms. Such as T/T, L/C, Western Union, PayPal.
Q5. What’s your warranty time?
A5: We offer 18 months warranty time.
Q6. How does your factory do the quality control?
A6: Quality is priority. We always attach the importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packing and shipping.
Q7. What is the standard of package?
A7: Export standard package or special package according to customer requirement
Q8. What kind of certificate you have?
A8: We have ISO9000, CB, CE, INMETRO, SONCAP, SASO.
Q9. Where is your main market for your products?
A9: Most of our products are exported to Southeast Asia, Africa and Mid East.
