제품 사양

Warranty: 2 years

Customized support: OEM, ODM

Model Number: CTL

Housing Color: black

Panel size: 48*48,48*96,72*72,96*96,

Control: PID/On-off control

Input: J,K,E,T,pt100,

Output: Relay,SSR,Pulse voltage etc

인증: CE, ISO 9001

기본 정보

인증: CE, ISO 9001

Model Number: CTL

결제 및 배송 조건

Packaging Details: Standard carton package or according to request.

제품 설명

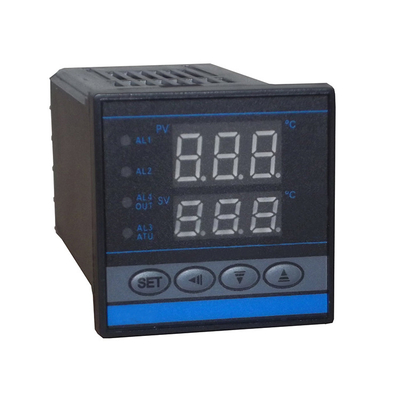

CTL series

Temperature Controller

Products Description

1. General Specifications

Power Supply	AC85~265V, 50/60Hz	Operating condition	-10~60°C,25%~85% rH
Accuracy	±0.5%FS	Control method	Auto-tuning PID control/On-Off control
Resolution	1°C	Display Unit	Dual 3-digit LED
Input Type	Thermocouple :K,E ,J etc. RTD :Pt100,Cu50,Cu100 etc.	Output Type	Relay contact, AC250V/3A, SSR Drive(Voltage pulse) D.C. 4~20mA
Alarm Mode	Abosolute, Deviation, Range	Alarm Output	Relay contact, AC250V/3A
Panel Size	CTL-4: 4848mm CTL-5: 4896mm CTL-6: 9648mm CTL-7: 9696mm

2. Features

Fuzzy PID, control fast and smooth, with low cost

* Using industrial-grade CPU, strong anti-interference ability

* Multiple input signal and output types are available

* Multiple alarm types, suitable for the use of different applications

* Stable and reliable performance, meet low-cost temperature control requirements.

* Fuzzy PID, control fast & smooth
* Input signal type can be set up by software
* Thermocouple/RTD break alarm
* Thermocouple inverse / RTD short alarm
* PV bias, PID auto-tuning, alarm delay, etc.

PANEL INTRODUCTION

APPLICATIONS

Can be used to control temperature in water treatment, refrigeration, electric heating products, such as oven, injection molding machine, dryer, printing machinery, packaging machinery, electric stove, etc.
