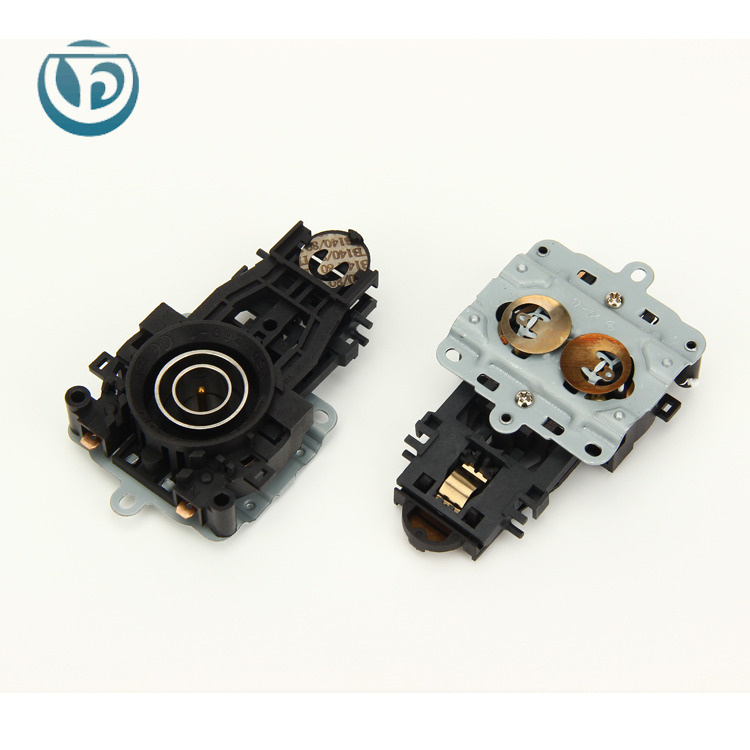

The KSD-689-1 kettle control can be used either as a stand-alone 2 piece cordless system or the contact housing can be used to interface with all SL-168 series concealed heater controls. The low profile, 360º interface, features excellent coning and low up thrust forces and has become the standard for concealed heater applications.
• Innovative design accommodates user misalignment
• Shutterless design reduces number of moving parts giving increased robustness
• Low upthrust forces allow low weight appliance design
Suitable for direct insert steam control of electric kettle without rope .
The bimetal piece has high quality and acumen ;
The insulated plastic material could be ensured high temperature ;
Reasonable configuration and easy assemble .
Specification
items | parameter |
Rated voltage | 110V-250V |
Rated current | 13A |
Max. Ambient temperature | T125 |
Operating life | 10000 cycle |
Temperature tolerance | ±5 ℃ |
Hi-pot | 2200V AC 1 minute |
Approval | CQC TUV CE CCC CB |
